A single-angle gloss meter that is ideal for samples with medium gloss.

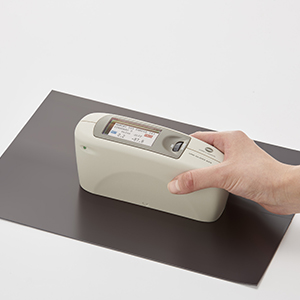

Uni Gloss UG-60A/60CT/60S Gloss Meter

The Uni Gloss UG-60A (successor to the UG-60Plus), with single measuring angle of 60°, is an easy-to-use gloss meter that provides precise gloss measurement of sample with medium gloss instantly.

With the addition of UG-60CT and UG-60S models that offers tighter inter-instrument agreement and smaller aperture, the new gloss meter series offers the versatility needed to meet the ever-changing needs in gloss measurement.

Uni Gloss UG-60A/60CT/60S Gloss Meter

  • Easy-to-read color LCD screen
  • Small measurement area of 2mm x 4mm (UG-60S)
  • High inter-instrument agreement and repeatability (UG-60CT)
  • Creation of graphs and reports with new software “smart-lab Gloss”
  • USB connectivity
  • Complies with major standards like ISO, ASTM,DIN and JIS

Uni Gloss UG-60A/60CT/60S Gloss Meter

Model Uni Gloss UG-60A Uni Gloss UG-60S Uni Gloss UG-60CT
Measuring geometry 60°
Size of Measurement Spot 60° : 9 × 15 mm 60° : 2 × 4 mm 60° : 9 × 15 mm
Standard compliance ISO 2813, ASTM D 523, ASTM D 2457, DIN 67530, ISO 7668 (excluding Uni Gloss UG-60S), JISZ 8741 (excluding Uni Gloss UG-60S)
Measurement range 60° : 0.0 to 1,000 GU
Resolution 0.0 to 99.9 GU  : 0.1 GU

100 to 2,000 GU : 1 GU

Repeatability 0.0 to 99.9 GU  : 0.2 GU

100 to 2,000 GU : 0.2% of reading

0.0 to 19.9 GU : 0.1 GU

20.0 to 99.9 GU : 0.2 GU

100 to 2,000 GU : 0.2% of reading

Inter instrument agreement 0.0 to 99.9 GU  : 0.5 GU

100 to 2,000 GU : 0.5% of reading

0.0 to 19.9 GU : 0.2 GU

20.0 to 99.9 GU : 0.5 GU

100 to 2,000 GU : 0.5% of reading

Memory 999 measurements with date and time
Difference measurement Memory for 50 standard
Battery performance Approx. 4,000 measurements (When using 1.5V AA(R6) size alkaline battery)
Measurement time 0.5 seconds
Auto power off 10 to 99 seconds selectable
Languages English, Spanish, German, French, Italian, Japanese, Russian, Portuguese, Turkish, Polish
Measurement mode Normal mode (Sample mode, Statistics, Continuous, Basic mode), Difference mode
Interface USB 2.0
Operating temperature/ humidity range 15 to 40°C relative humidity 85% or less (at 35°C with no condensation)
Storage temperature/ humidity range -10 to 60°C relative humidity 85% or less (at 35°C with no condensation)
Power 1.5V AA(R6) size alkaline battery, or via USB port of PC
Size (W x H x D) 155 × 73 × 48 mm
Weight 400g
Display Color LCD
Software Smart-chart (smart-lab Gloss)

Uni Gloss UG-60A/60CT/60S Gloss Meter

Catalog Download: Download PDF (1.4MB)
