Konica Minolta’s CA-500 Series features two Display Color Analyzers, the CA-510 and CA-527, delivering enhanced performance for evaluating luminance, chromaticity, and flicker, supporting next-generation display development, including OLED, micro-LED, and HDR.

Display Color Analyzer CA-527 / CA-510

The Konica Minolta Display Color Analyzer CA-500 Series comprises two models:

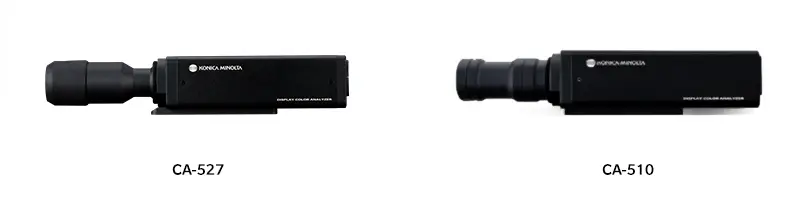

  • Display Color Analyzer CA-527 (Ø27 mm measurement area)
  • Display Color Analyzer CA-510 (Ø10 mm measurement area)

Both models are high-performance instruments designed for precise evaluation of luminance, chromaticity, and flicker in today’s most advanced display technologies. Optimized for OLED, micro-LED, and HDR panels, they deliver enhanced low-luminance sensitivity, reliable high-brightness performance, and measurement stability needed for both R&D and production environments.

With a newly designed optical system and improved measurement range, the CA-500 Series supports critical tasks such as near-black assessment, wide color gamut evaluation, and flicker evaluation, enabling users to validate and fine-tune modern display characteristics with confidence.

Expanded Accuracy Guaranteed Luminance and Chromaticity Range

Modern displays demand a wider measurement range—especially at ultra-low luminance (near-black) and high luminance (HDR peak brightness). The CA-500 Series expands the accuracy guaranteed dynamic range, enabling more reliable luminance and chromaticity evaluation for displays with higher contrast ratios and wider color gamut, such as OLED and micro-LED.

CA-527 (Ø27 mm measurement area):
Luminance: 0.0001 to 10,000 cd/m²
Chromaticity: 0.001 to 10,000 cd/m²

CA-510 (Ø10 mm measurement area):
Luminance: 0.0002 to 20,000 cd/m²
Chromaticity: 0.002 to 20,000 cd/m²

Faster Low Luminance Measurements to Improve Takt Time

The CA-500 Series features a newly designed optical system that significantly reduces measurement time at low luminance compared with conventional models, boosting productivity on display manufacturing lines and enabling faster evaluation cycles in modern display R&D.

Guaranteed Luminance Measurement Time*

Probe ModelCA-527CA-510
Luminance measurement time0.0001 cd/m2: 1 sec0.0002 cd/m2: 1 sec

*When using AUTO mode.

Waveform Evaluation for Complex Emission Behavior

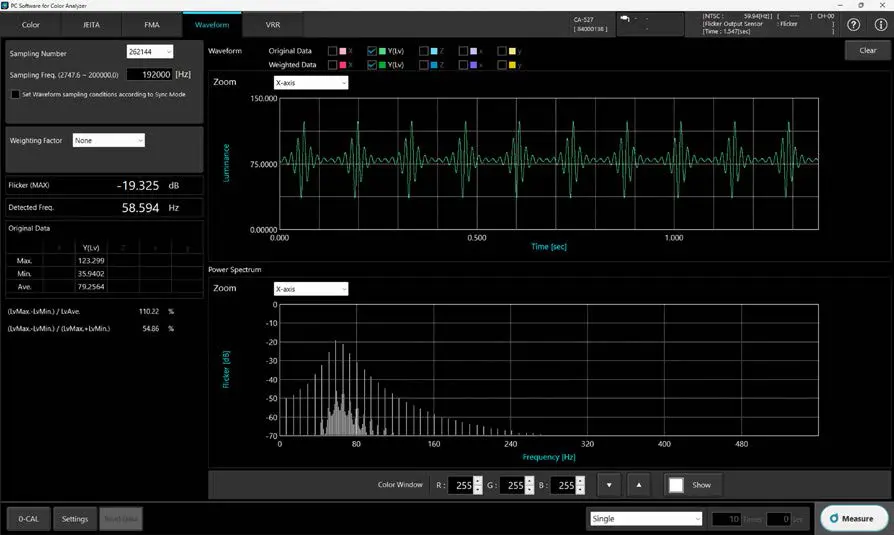

The CA-500 Series offers the capability to measure lower-luminance regions with a higher sampling rate. This improved feature enables it to capture the emission waveforms of displays more accurately, especially with advancements in display technologies such as OLED screens moving towards higher contrast ratios or the latest micro-LED displays using dynamic drive systems.

Variable Refresh Rate (VRR) Flicker Measurement

The Display Color Analyzer CA-500 Series supports the latest Variable Refresh Rate (VRR) flicker measurement, along with established evaluation methods such as JEITA, VESA, and Flicker Modulation Amplitude (FMA). This comprehensive set of flicker measurement techniques enables reliable analysis of modern displays designed for advanced video performance and energy-efficient operation, making it ideal for both display development and professional testing applications.





Display Color Analyzer CA-527 / CA-510

  • 2 Models
    • CA-527: Ø27 mm measurement area
    • CA-510: Ø10 mm measurement area
  • Wide dynamic range measurement
    • Luminance:
      • 0001 – 10,000 cd/m² (CA-527)
      • 0002 – 20,000 cd/m² (CA-510)
    • Chromaticity:
      • 001 – 10,000 cd/m² (CA-527)
      • 002 – 20,000 cd/m² (CA-510)
    • High-speed measurement, especially at low luminance
      • CA-527: 0.0001 cd/m2: 1 sec
      • CA-510: 0.0002 cd/m2: 1 sec
    • High sampling rate even at low luminance regions
      • *1CA-527:  0.1-10,000 cd/m², Sampling frequency up to 200 kHz (Changeable)
      • *1CA-510: 0.2-20,000 cd/m², Sampling frequency up to 200 kHz (Changeable)
    • Broad spectrum of flicker measurement methods
      • JEITA (Japan Electronic Information Technology Association)
      • VESA (Video Electronics Standards Association)
      • FMA (Flicker Modulation Amplitude)
      • VRR (Variable Refresh Rate)
    • Comprehensive standard software package: PC Software CA-S40 and Software Development Kit CA-SDK2

*1 Flicker Mode





Display Color Analyzer CA-527 / CA-510

(Click here for expanded specifications chart)

ModelCA-527CA-510
Measurement areaØ 27 mmØ 10 mm
Acceptance angle± 8.5°± 15°
Accuracy guaranteed measurement distance30 ± 5 mm30 ± 5 mm
LuminanceAccuracy guaranteed luminance range *70.0001 to 10,000 cd/m20.0002 to 20,000 cd/m2
Accuracy (for white)*1, *3> 0.0001 cd/m2± 9 %—
> 0.0002 cd/m2± 9 %
> 0.0005 cd/m2± 3 %± 3.5 %
> 0.001 cd/m2± 2 %± 3 %
> 0.01 cd/m2± 1.5 %± 2 %
> 0.1 cd/m2± 1.5 %± 1.5 %
Repeatability

(2σ)*1

AUTO> 0.0001 cd/m210 % —
> 0.0002 cd/m210 %
> 0.0005 cd/m22 %3 %
> 0.001 cd/m21 %2 %
> 0.01 cd/m20.30 %0.35 %
> 0.1 cd/m20.12 %0.12 %
> 1 cd/m20.10 %0.10 %
ChromaticityAccuracy guaranteed luminance range *70.001 to 10,000 cd/m20.002 to 20,000 cd/m2
Accuracy (for white)*1, *3> 0.001 cd/m2± 0.003—
> 0.002 cd/m2± 0.003
> 0.01 cd/m2± 0.002± 0.002
Repeatability

(2σ)*1

AUTO> 0.001 cd/m20.0030—
> 0.002 cd/m20.0030
> 0.01 cd/m20.00090.0012
> 0.1 cd/m20.00040.0005
> 1 cd/m20.00020.0003
> 10 cd/m20.00020.0002
Flicker (Contrast)Flicker*6Measurement luminance range*70.5 to 10,000 cd/m21 to 20,000 cd/m2
Measurement target (Flicker frequency)0.25 to 65 Hz0.25 to 65 Hz
Accuracy30 Hz, AC/DC 10% sine wave± 0.3 %± 0.3 %
60 Hz, AC/DC 10% sine wave± 0.3 %± 0.3 %
Repeatability (2σ)20 to 65 Hz, AC/DC 10% sine wave0.3 %0.3 %
XYZ*6Measurement luminance range*70.5 to 10,000 cd/m21 to 20,000 cd/m2
Measurement target (Flicker frequency)0.25 to 200 Hz0.25 to 200 Hz
Accuracy30 Hz, AC/DC 10% sine wave± 1.5 %± 1.5 %
60 Hz, AC/DC 10% sine wave± 2.2 %± 2.2 %
Repeatability (2σ)20 to 65 Hz, AC/DC 10% sine wave1.6 %1.6 %
Flicker ( JEITA)Flicker*6Measurement luminance range*70.5 to 10,000 cd/m21 to 20,000 cd/m2
Measurement target (Flicker frequency)0.42 to 65 Hz0.42 to 65 Hz
Accuracy30 Hz, AC/DC 4% sine wave± 0.35 dB± 0.35 dB
30 Hz, AC/DC 1.2% sine wave± 0.35 dB± 0.35 dB
Repeatability (2σ)30 Hz, AC/DC 4% sine wave0.1 dB0.1 dB
30 Hz, AC/DC 1.2% sine wave0.3 dB0.3 dB
XYZ*6Measurement luminance range*70.5 to 8,500 cd/m21 to 14,000 cd/m2
Measurement target (Flicker frequency)*80.42 to 200 Hz0.42 to 200 Hz
Accuracy30 Hz, AC/DC 4% sine wave± 0.35 dB± 0.35 dB
30 Hz, AC/DC 1.2% sine wave± 0.35 dB± 0.35 dB
Repeatability (2σ)30 Hz, AC/DC 4% sine wave0.4 dB0.4 dB
30 Hz, AC/DC 1.2% sine wave1.4 dB1.4 dB
WaveformFlicker*6Measurement luminance range*70.1 to 10,000 cd/m20.2 to 20,000 cd/m2
Sampling frequency200 kHz Changeable200 kHz Changeable
Repeatability (2σ)Lv: Measurement minimum

luminance, fs: 3 kHz, fc: 1 kHz

1.8%1.8%
XYZ*6Measurement luminance range*70.1 to 10,000 cd/m20.2 to 19,000 cd/m2
Sampling frequency3 kHz Changeable3 kHz Changeable
Repeatability (2σ)Lv: Measurement minimum

luminance

13%13%
Lv: 1 cd/m21.4%2.8%
VRR-FlickerFlickerMeasurement luminance range*70.5 to 10,000 cd/m21 to 20,000 cd/m2
Sampling frequency*8200 kHz Changeable200 kHz Changeable
Measurement target (Flicker frequency)*80.01 to 100 k [Hz]0.01 to 100 k [Hz]
Accuracy1 to 120 Hz, AC/DC 10% sine wave± 0.3 %± 0.3 %
Repeatability (2σ)1 to 120 Hz, AC/DC 10% sine wave0.3 %0.3 %
Accuracy guaranteed measurement speed*4LvxyAUTO1 time/sec (> 0.0001 cd/m2)1 time/sec (> 0.0002 cd/m2)
5 times/sec (> 0.012 cd/m2)5 times/sec (> 0.02 cd/m2)
20 times/sec (> 0.15 cd/m2)20 times/sec (> 0.25 cd/m2)
Flicker (Contrast)20 times /sec20 times /sec
Flicker ( JEITA/VESA)0.5 times/sec (at 1 HzPitch),

2.5 times/sec (at 10 HzPitch)

0.5 times/sec (at 1 HzPitch),

2.5 times/sec (at 10 HzPitch)

VRR-FlickerSampling frequency: 3 kHz0.7 times/sec (at 1s Obs.)0.7 times/sec (at 1s Obs.)
Measurement target (Vertical synchronization frequency)0.5 to 240 Hz  (luminance and chromaticity)0.5 to 240 Hz  (luminance and chromaticity)
Power supplyDC 5 V (input from USB bus power line or RS communication connector)
Operating temperature/humidity range*510 to 35°C, relative humidity 85% or less with no condensation
Storage temperature/humidity range0 to 45°C, relative humidity 85% or less (at 35°C) with no condensation

*1: Measured under Konica Minolta’s standard light source (6,500 K).
*2: Luminance for monochrome is measured when reading of luminance for white is 100 cd/m2.
*3: Temperature 23°C/± 2°C, relative humidity 40 % ± 10 %
*4: In NTSC [DOUBLE FRAME] synchronization mode using USB with one probe. Measured using a Konica Minolta-designated PC (with PC and probe directly connected, using the supplied measurement software).
*5: Reading fluctuation (compared to reference reading at 23°C, 40 % RH): Luminance: ± 2% for white; Chromaticity (at 100 cd/m2): ± 0.002 for white, ± 0.003 for monochrome
*6: “Flicker” and “XYZ” are mode names for PC Software CA-S40.
*7: Measured under Konica Minolta’s standard light source (constant light). If the luminance momentarily greatly exceeds the upper limit, such as with a PWM light source with a small duty cycle, luminances below the upper limit may be shown as too high.
*8: The listed values are for use with CA-S40 or CA-SDK2.

**The specifications and product appearance shown here may be changed without notice.
