Measures the gloss condition of object surfaces.

(Discontinued) Multi Gloss 268Plus Gloss Meter

Ultra Compact Multi Gloss 268Plus Gloss Meter with three measuring ccedngles in cce portable device

The Multi Gloss 268Plus Gloss Meter is ultra compact and portable with three measuring angles in full accordance with ISO, ASTM, BS, DIN, and JIS norms. All functions including language settings, calibration, measurement, and statistics can be performed with only two operation keys. With the three angles 20°, 60° and 85°, various glossy surfaces, from high gloss to matte, can be easily measured. Up to 999 measurements can be stored and used for statistical calculations for perfect production control.

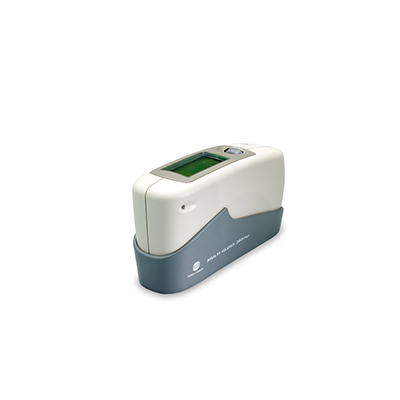

Multi Gloss 268Plus Gloss Meter

(Discontinued) Multi Gloss 268Plus Gloss Meter

  • Compact, lightweight, and extremely portable.
  • Highly user-friendly.
  • Compliant with ISO, ASTM, DIN, and JIS International standards.

(Discontinued) Multi Gloss 268Plus Gloss Meter



Model Multi Gloss 268Plus
Measuring geometry 20°, 60°, 85°
Size of Measurement Spot 20° : 10 × 10 mm

60° : 9 × 15 mm

85° : 5 × 38 mm

Standard compliance ISO 2813, ISO 7668, ASTM D 523,
ASTM D 2457, DIN 67 530, JIS Z 8741,
BS 3900, BS 6161(Part 12)
Measurement range 20° : 0.0 to 2,000 GU

60° : 0.0 to 1,000 GU

85° : 0.0 to 160 GU

Resolution 0.0 to 99.9 GU  : 0.1 GU

100 to 2,000 GU : 1 GU

Measurement precision Repeatability

0.0∼99.9 GU : 0.2 GU
100∼2,000 GU : 0.2% of reading

Inter Instrument agreement

0.0∼99.9 GU : 0.5 GU

100∼2,000 GU : 0.5% of reading

Memory 999 measurements with date and time
Difference measurement Memory for 50 standard
Battery performance Approx. 10,000 measurements
(when using 1.5 V AA(R6)size alkaline battery)
Measurement time 0.5 seconds (each measurement)
Power OFF Auto : 10∼99 seconds select
Languages English,Spanish,German,French,Italian,Japanese
Measurement mode Normal mode (Sample mode, Statistics, Continuous, Basic mode), Difference mode
Interface RS-232C format
Operating temperature/ humidity range 15 to 40°C relative humidity 85% or less (at 35°C with no condensation)
Storage temperature/ humidity range -10 to 60°C relative humidity 85% or less (at 35°C with no condensation)
Power supply 1.5 V AA(R6)size alkaline battery
Dimensions 155(W) × 73(H) × 48(D) mm
Weight 400 g
Model Multi Gloss 268Plus
Standard accessories Calibration holder TRI, High gloss tile,  PC-cable, Carrying case, Data transfer software (gloss-link)
, 1.5 V AA(R6)size alkaline battery
Optional accessories Checking standard TRI
(3 semi gloss tiles 20, 60, 85°)
Checking standard mirror
(3 tiles 20, 60, 85°)
USB-adapter
AC adapter

Note : The specifications described in this document are subject to change without notice.
